Kuvaus

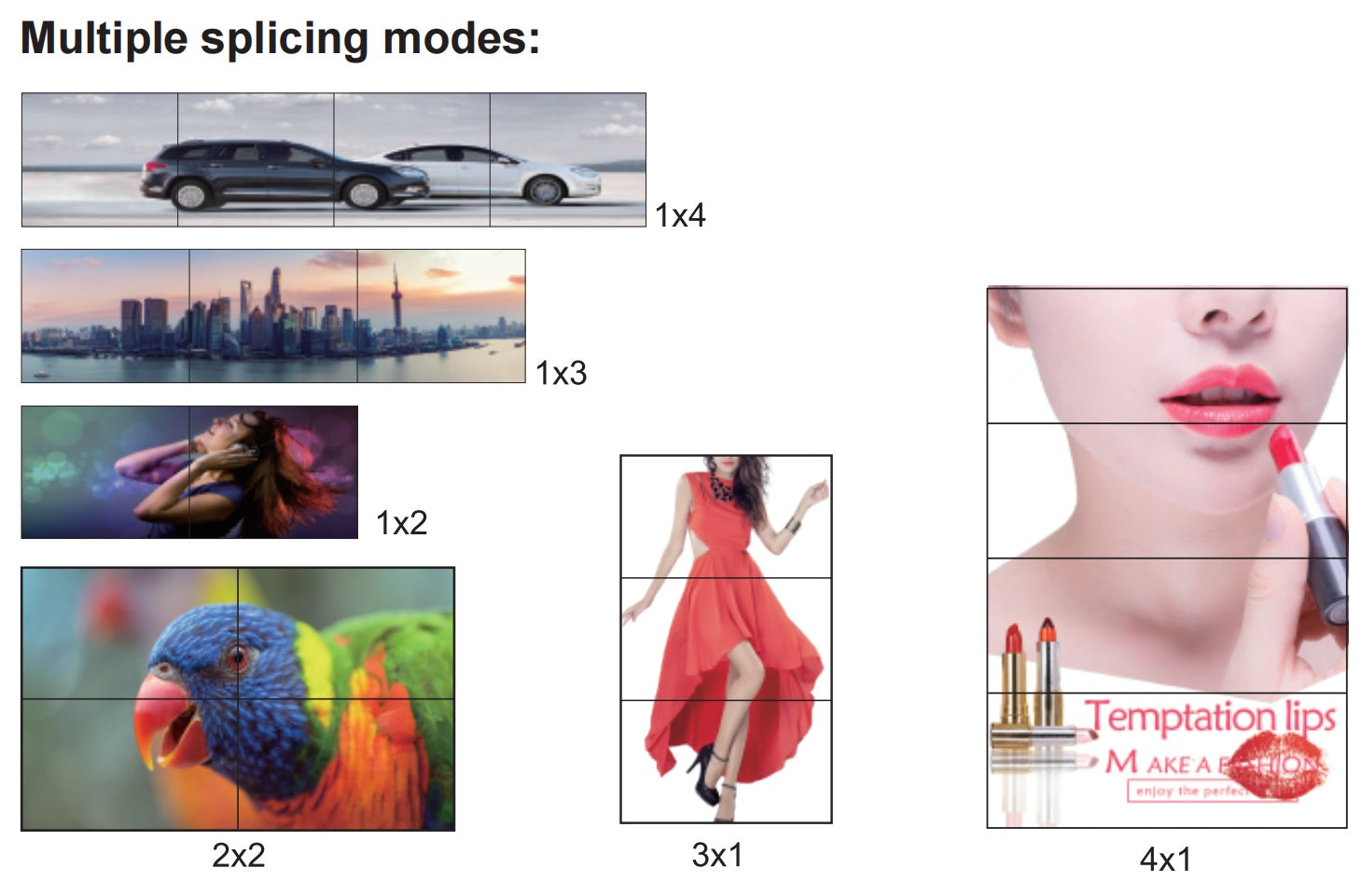

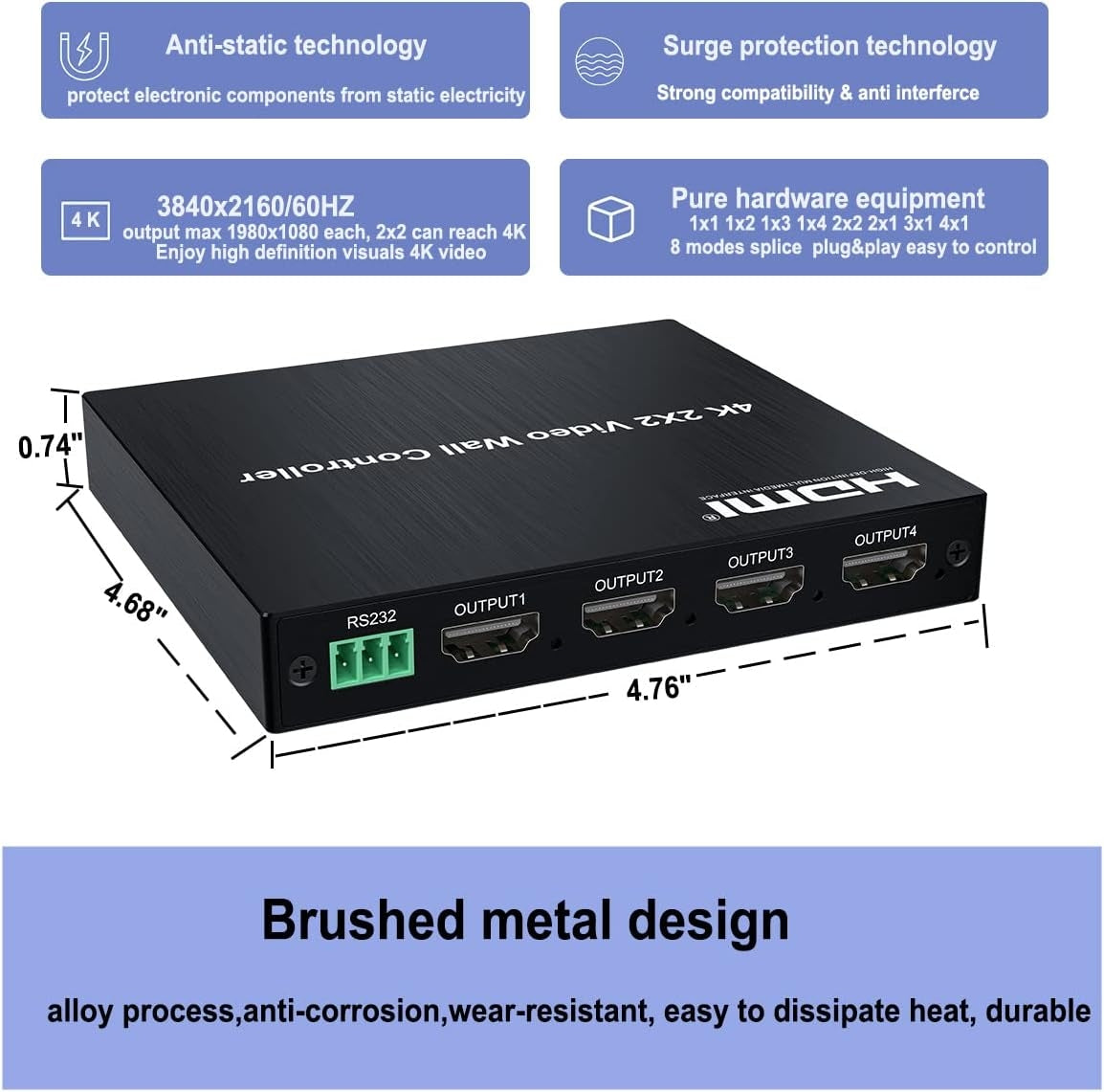

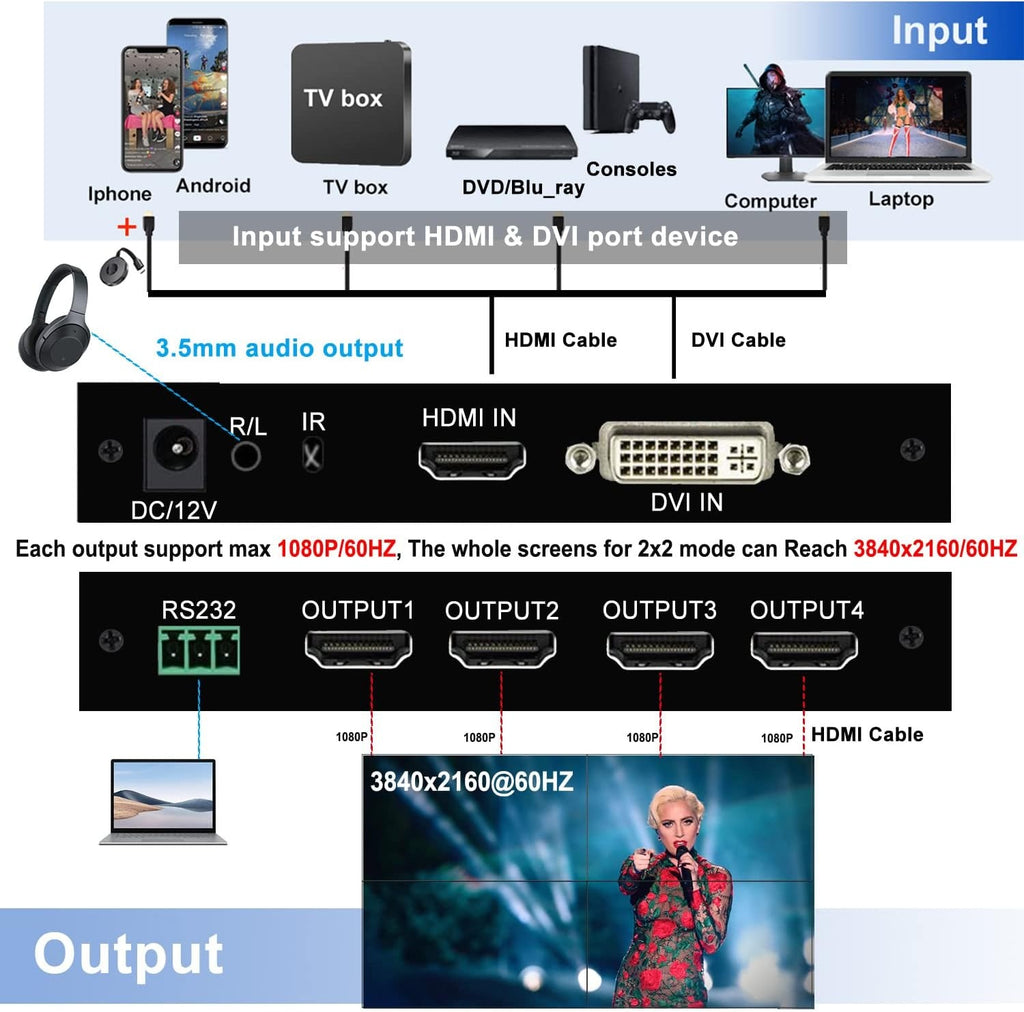

This 2x2 HDMI video image processor Support HDMI and DVI input;HDMI 1.4 input support upto 3840x2160/30HZ(Backward compatibility),HDMI output can support resolution can up to 1920x1080P@60Hz,when 2X2 mode, The whole out resolution can reach 3840x2160/60HZ, When splitter mode 1x1, each screen resolution keep the original resolution(max 3840x2160/30HZ) This 4K HDMI LED video wall controller support all splicing mode 2x2 1x2, 1x3, 1x4, 4x1, 3x1, 2x1 and splitter mode 1x1, If portriat mode need to rotate the original resource 90 degree(this machine itself not support 90 degree rotation). Because of the physical border gap of display, the image will appear pull-apart on visually and feel very unnatural. Through the edge mask processing, the image will be without deformation or stretching, and more natural and realistic.(180°Screen Rotation Normally used in 2x2 mode） This Quad viewer support HDMI spplitter,remote control loop to set 1x1 mode, each output shows the original resolution(max 3840x2160@30Hz) This 2x2 HDMI splitter support remote control which has independent mode keys like:1x2 1x3 1x4 2x2 3x1 4x1,if you want to set 2x1 1x1 mode, need press "loop" key to select.Also support RS232 control.
