- 4.0 inch color screen,support 65K color display,display rich colors.
- 480X320 resolution, optional touch function.
- Using the SPI serial bus, it only takes a few IOS to illuminate the display.
- Easy to expand the experiment with SD card slot.
- Provide underlying driver technical support.

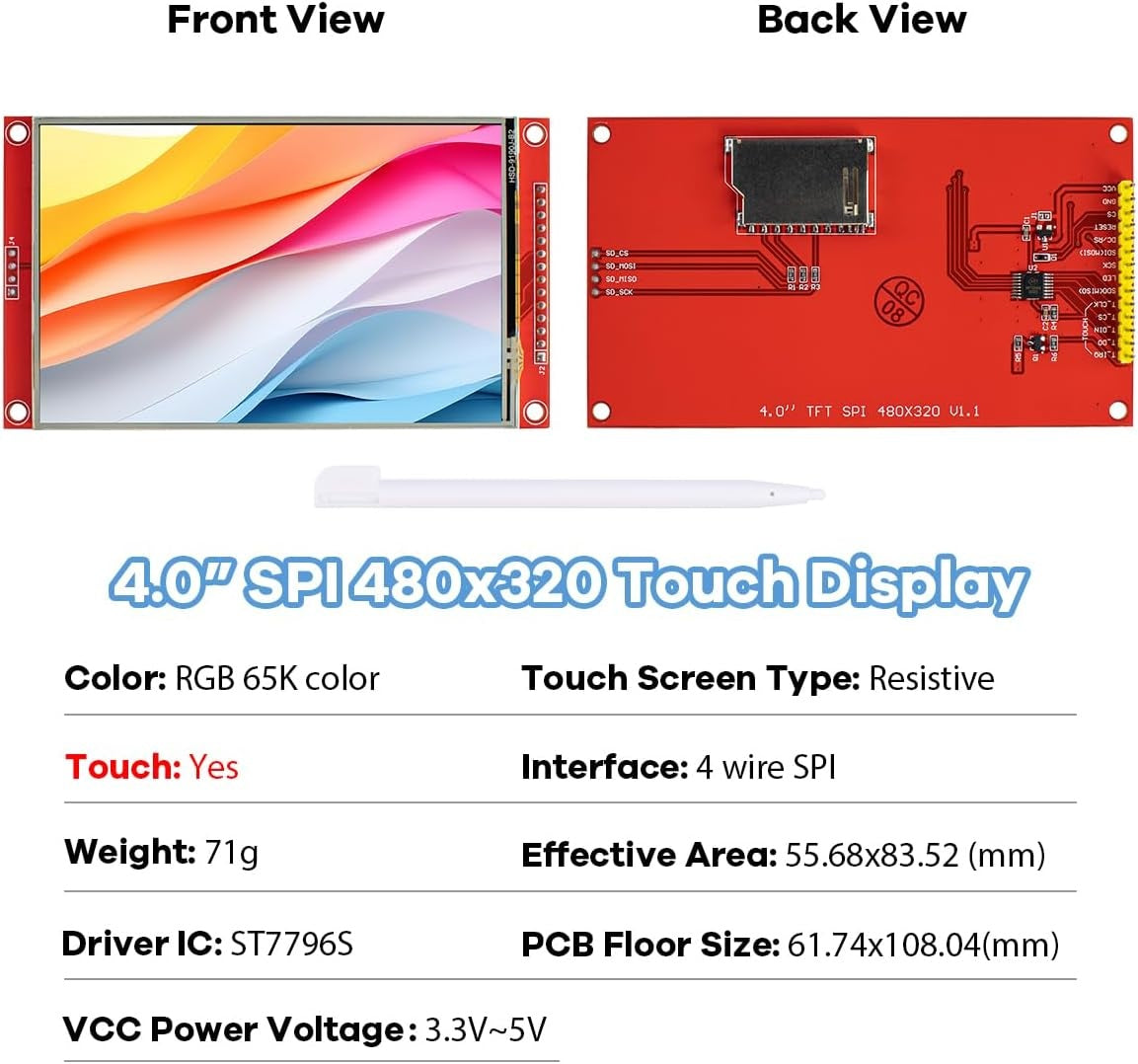

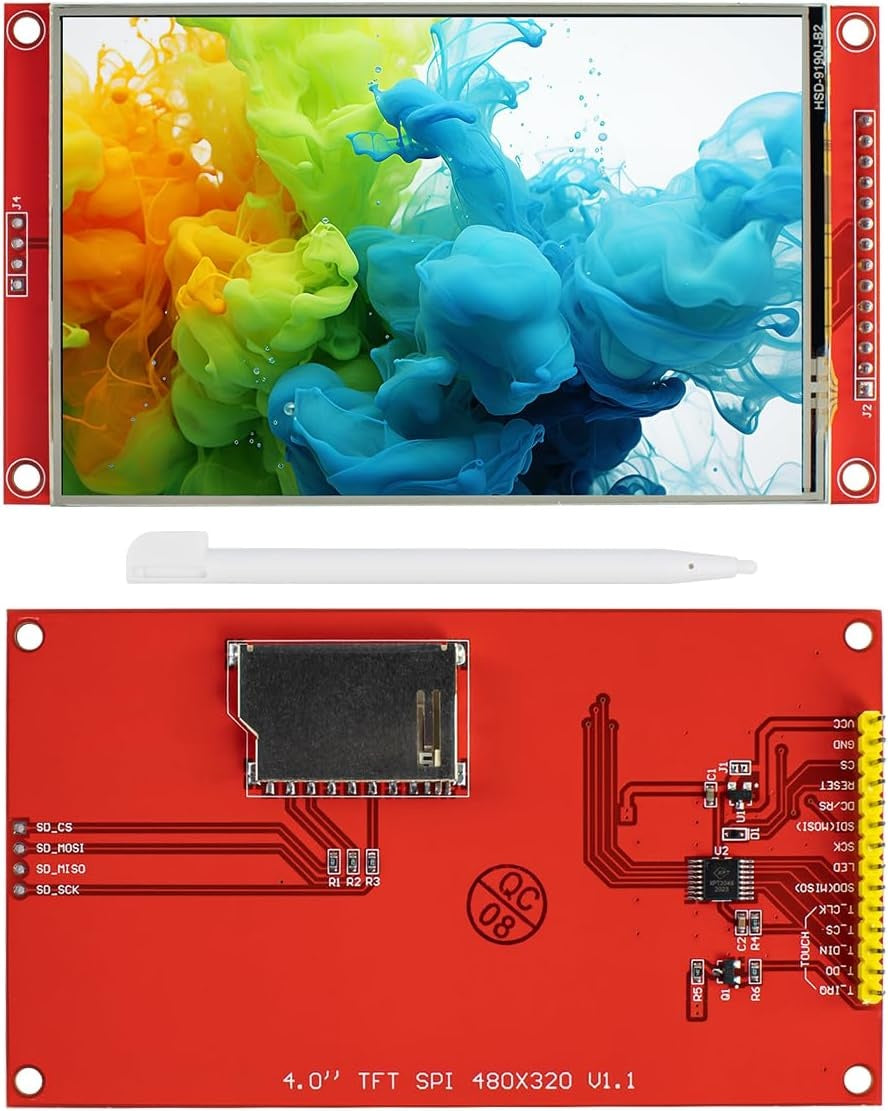

100% Brand New 4.0-inch TFT LCD touch screen, ST7796S driver IC, 480×320 resolution, RGB 65K rich colors. 4-wire SPI interface, low IO occupation, easy to use. Equipped with resistive touch (XPT2046 IC) and touch pen, built-in SD card slot for expansion. Military-grade process, 3.3V~5V compatible, with sample programs and driver support.
Key specifications:
Screen size: 4.0 inches.
Display type: TFT colour screen.
Display colour: RGB 65K colours.
Driver IC: ST7796S
Resolution: 480 × 320 pixels.
Communication interface: 4-wire SPI
Active display area: 55.68 x 83.52 mm.
PCB overall size: 61.74 × 108.04 mm.
Touch type: resistive touch screen.
Touch IC: XPT2046.
Working voltage: 3.3 V ~ 5 V.
Package weight: approx. 71g
Product Highlights
Package includes:
1 x 4.0 inch SPI TFT LCD touch screen module.
